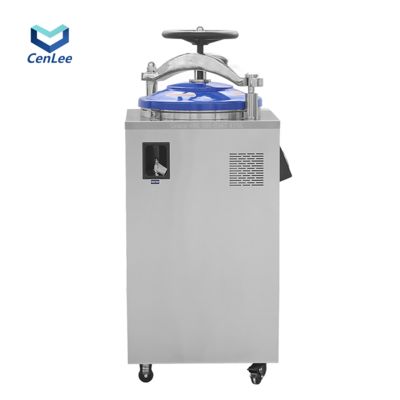

DGL-G series (Automatic with drying)

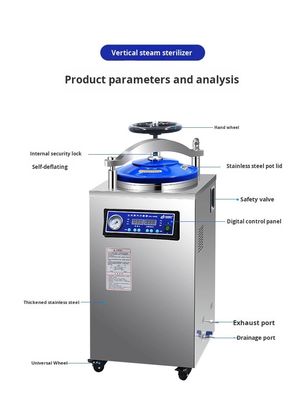

Product features
● Equipped with a drying function● Buzzer reminder upon completion of sterilization, with automatic shutdown

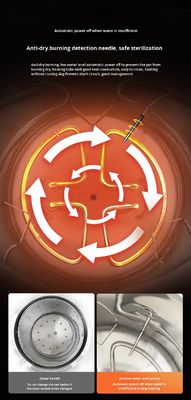

● Automatic protection functions: over-temperature protection,over-pressure protection,low water level protection,anti-dry heating protection

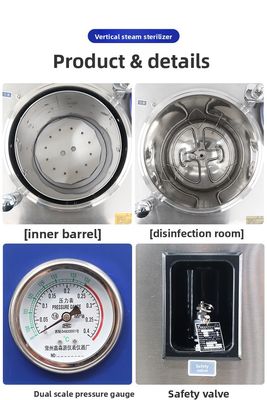

● Stainless steel inner cylinder (or mesh basket)

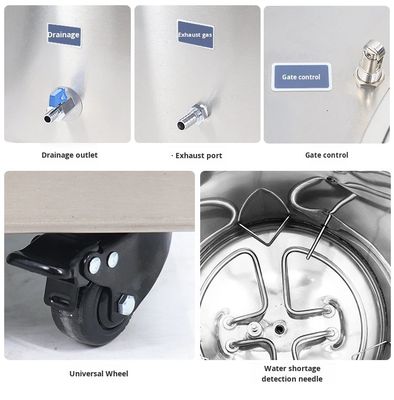

● Automatic discharge of cold air and automatic discharge of steam after sterilization
● External printer is available as an option
● An automatic water intake function is available as an option

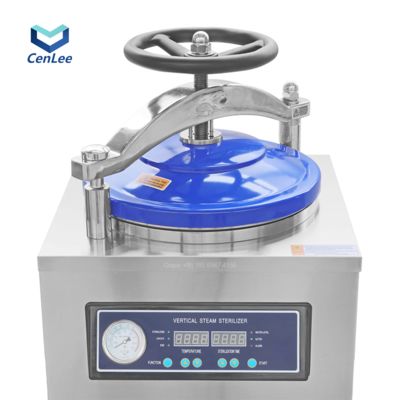

● Handwheel translation structure
● High-quality stainless steel material
● Microcomputer automatic control with arbitrarily settable sterilization parameters
● Safety interlock device
● Digital display and touch buttons
● Equipped with a standard test interface
● Self-expanding seal
Technical parameter
| Technical Parameters/Model | DGL-35G | DGL-50G | DGL-75G | DGL-100G |
| Volume | 35L | 50L | 75L | 100L |
| Power | 2.5KW | 3.5KW | 4.5KW | 4.5KW |
| Voltage | AC 110V 60HZ or AC 220V 50HZ | |||
| Design pressure | -0.1-0.25MPa | |||
| Design temperature | 139℃ | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature range | 116~134℃ | |||
| Sterilization time range | 4~120 min | |||
| Drying time range | 0~ 240 min | |||
| Chamber Size(mm) | Φ300x450 | Φ350x515 | Φ400x585 | ф450x615 |
| Bucket dimension(mm) | Φ275x395 | Φ325x235x2 | Φ375x265x2 | Φ425x275x2 |
| (Optional)basket dimension(mm) | Φ270x380 | Φ320x220x2 | Φ370x250x2 | Φ420x265x2 |
| Outer dimension(mm) | 476x473x990 | 544x536x1100 | 586x576x1210 | 620x610x1275 |
| Packing size(LxWxH)(mm) | 520x560x1120 | 580x630x1230 | 670x620x1350 | 690x650x1410 |
| Gross/net weight(kg) | 77/65kg | 105/82kg | 117/92kg | 144/113kg |
